Receptacle Plate Engraving on the VE810 Engraving Machine

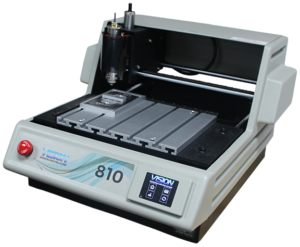

Compact enough for a desktop or shop counter, the VE810 delivers the precision and consistency needed to produce durable identification plates, tags, panels, receptacle plate engraving, and other electrical marking applications. Vision’s VE810 Small Engraving Machine brings professional engraving capabilities in-house, helping you save time and money while increasing quality and efficiency.

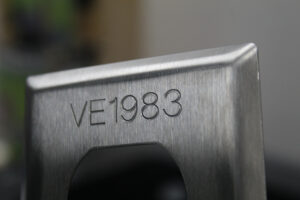

In this application, the VE810 is used for stainless-steel receptacle plate engraving with circuit and panel information. Permanent engraved identification helps electricians and facility personnel quickly determine which electrical panel and breaker controls a specific outlet.
For commercial, industrial, and healthcare facilities, clear and durable electrical identification can play an important role in maintaining organized, easily identifiable electrical systems. Unlike paper or adhesive labels that can peel, fade, or wear over time, stainless steel receptacle plate engraving provides a long-lasting identification solution.
Receptacle Plate Engraving with Precision, Built for Production.
For this demonstration, we used a .015″ SSS cutter and engraved to a total depth of .010″. Seven passes were used to help extend cutter life while producing a smoother, cleaner engraving. Fewer passes can be used when appropriate, but may result in a rougher finish and increased tool wear.

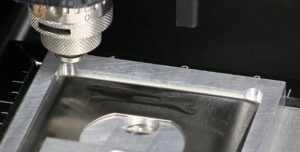

Lubricant (we used a vegetable oil based lubricant) is not required, but is recommended for this application to help improve cutting performance and extend tool life.

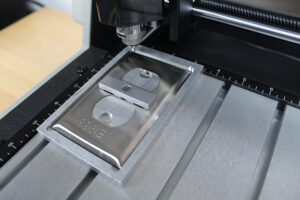

A custom fixture securely holds the receptacle plate to the VE810’s t-slot table, providing consistent positioning and repeatable results.
For production work, proper work holding is an
important part of achieving reliable receptacle plate engraving results.
The collet spindle securely holds the cutter and helps minimize vibration during the engraving process. Less vibration can contribute to smoother engraving and longer tool life.
Small Machine. Professional Results.
With its compact footprint, precision motion control, flexible work holding, and ability to engrave a wide range of materials, the Vision VE810 is a versatile solution for bringing receptacle plate engraving and other electrical engraving related applications in-house.
From receptacle plate engraving and electrical tags to nameplates, control panels, parts marking, and more, the VE810 gives businesses an efficient way to produce professional-quality engraved products without requiring a large production machine.
Ready to bring engraving in-house? The VE810 combines compact convenience with dependable engraving performance—making it an ideal solution for businesses looking to expand their capabilities and produce durable receptacle plate engraving and identification products on demand.
American-made precision. Industry-leading support. Trusted since 1983.
Since 1983, Vision has proudly manufactured precision engraving machines and CNC routing systems in the USA. Built around a commitment to American manufacturing, quality engineering, and long-term reliability, Vision equipment is engineered to deliver dependable performance in demanding professional and industrial applications.
Every Vision system is backed by industry-leading service and technical support from our knowledgeable U.S.-based team. With American-made quality, proven engineering, and support you can count on, Vision gives you the confidence to invest in equipment built for performance, productivity, and years of reliable operation.
Contact Vision Engraving & Routing Systems to learn more about Vision’s VE810 Small Engraving Machine, Electrical Engraving Applications, and how to do permanent receptacle engraving, or to request a free online engraving demo. Visit us online today at www.visionengravers.com or call 1-888-637-1737.
