4' x 8' Large - CNC Router / Engraver
Finance Now! 2448 Large Fromat CNC Router Routed Out Vision Sign 3D Engraved Open Sign
Vision’s 4’ x 8’ CNC Router is a heavy-duty, large-format machine capable of handle a wide variety of milling, drilling, contouring, routing and engraving projects. Applications for these CNC routers include: cut out letters, inlays, and ADA and 2.5-D and 3D signs; cabinets, furniture, and other woodworking projects; control panels; and plastic and metal fabrication and machining. All of our CNC Routers are built to be rugged, reliable and backed with a superior customer support team.

4' x 8' Router Highlights:
• 4' x 8' routing area
• High-speed Series 3 Controller
• Ethernet interface
• 4.25” Z-axis stroke
• Vacuum chip/dust removal system included
• Aluminum T-slot or vacuum table available
• Optional DACS (Digitally Aligned Cutting System) camera, an alignment tool providing perfect print-to-cut   registration for graphics
• Runs directly from Vision PRO 8, EnRoute & Type 3, allowing users to import more than 65 file   types,including files from CorelDRAW™, SignLab, FlexiEngrave, FlexiSign, Adobe Illustrator, AutoCAD,   and numerous other popular software programs
• One year limited warranty
4' X 8' Large Router Specifications Chart
Software  Vision Pro
Work Area  51"X 98"
Z-Axis Stroke Work Piece Clearance  4.25"
Standard Spindle Power  4 HP
Resolution  .0005"
Max Speed  10"/Sec.
Standard Table  Aluminum T-slot
Machine Interface  Ethernet
Controller  Vision Series 3 High Speed Controller, Full Featured Hand-Held Pendant
Warranty  2 year Limited
Power Requirements  110V 5 Amps/ Single phase 220V 10 Amps
Physical Dimensions  120" (W) X 60" (D) X 69" (H)
Weight  1,760 Lbs.
Construction  X and Y Axis Precision drives, Z Axis High Precision Ball screw And High Speed 3 Axis Motion Control
 Options • Vacuum Table
• Vision DACS (Digitally Aligned Cutting System)
• Automatic Tool Changer
• Engraving Head
• Automatic Raster Braille Inserter
• 4.4 Hp, 6Hp, 7Hp, and 7.5Hp Spindles
CNC Router Engraver Head ENGRAVING HEAD
Shown in photo with optional Raster™ Braille Pen Bracket
Part # 15-1061-00
Extended Service Agreement for Vision Engraveing Machines & CNC Router

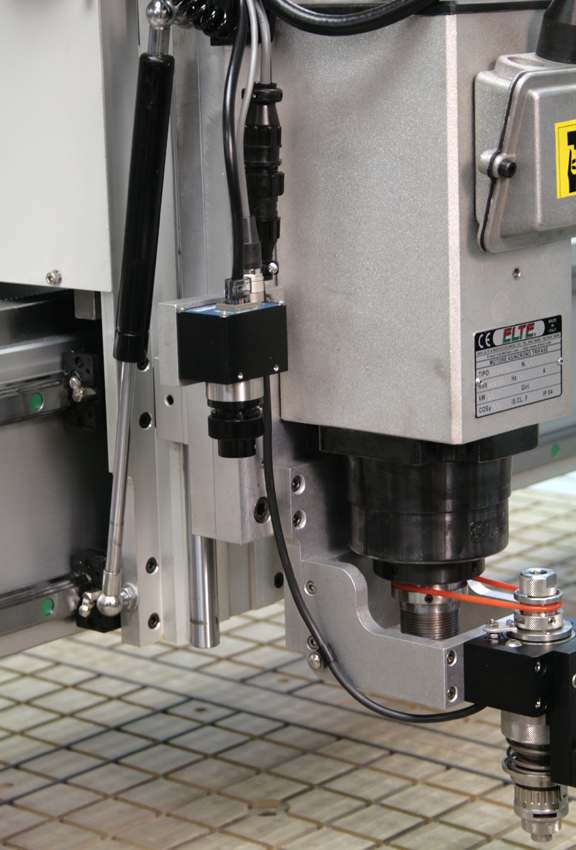

DACS (Digitally Aligned Cutting System)
DACS, an alignment tool which provides perfect print-to-cut registration for our routing machines. This easy-to-use system requires minimal training and setup time, and is the most cost-effective, accurate solution for improving digital finishing.
Part # 15-7000-00
Raster Braille Instertion Tool

AUTOMATIC Raster™ BRAILLE INSERTION TOOL
The Raster™ Pen Braille insertion device is an option for our engraving and routing systems. Vision-Pro software includes Braille fonts and is fully compatible with the Raster™ Method. Vision machinery allows precise placement of the Rasters™ (braille beads), which are essential for shops producing ADA-compliant signage. The Raster™ Method of Braille insertion and Raster™ Pen are licensed, patented products owned by Accent Signage Systems, Inc. Minneapolis, MN.
Part # 15-0081-00 (Bracket for Raster™ Pen )
Part # 40-0002-01 (Raster™ Pen 1/4")
